Pakula Rig Specifications

The following specifications are for our recommended rigs.
– The measurements do not include leader crimps and chafing gear.
– We do not recommend using hook locks with our lures or rigs.
– The legal length refers to conforming with IGFA rules, where some part of the hook must be within the lure skirt

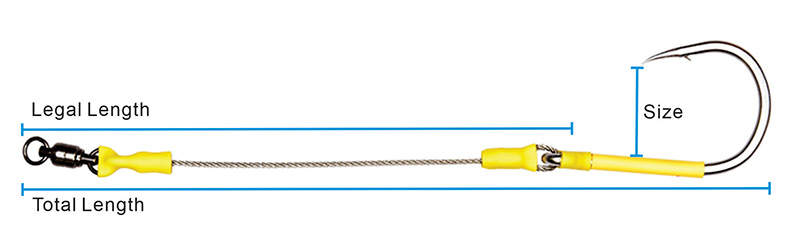

Pakula Swivel Rigs

Light Gauge Swivel Rigs – Max Line class 15kg (30lb) – Drag 3kg to 6kg (6lb to 12lb)
Rig Code	Hook	Lure	Swivel to	Swivel to	Total	Total
	Size (mm)	Size Code	Eye (cm)	Eye (in)	Length (cm)	Length (in)
SWL 15 / 04	15	4	7.20	2.83	10	3.94
SWL 20 / 04	20	4	7.30	2.87	11.2	4.41
SWL 19 / 04	19	4	7.30	2.87	11.2	4.41
SWL 19 / 10	19	10	8.90	3.50	12.7	5.00
SWL 19 / 15	19	15	9.70	3.82	13.6	5.35
SWL 20 / 10	20	10	8.90	3.50	12.7	5.00
SWL 20 / 15	20	15	9.70	3.82	13.6	5.35
SWL 25 / 10	25	10	8.70	3.42	13.3	5.24
SWL 25 / 15	25	15	10.00	3.93	14.6	5.75
SWL 25 / 25	25	25	13.30	5.24	17.9	7.05
SWL 30 / 35	30	30	19.30	7.59	25.2	9.92
Light Gauge Swivel Rigs – Max Line class 24kg (50lb) – Drag 6kg to 8kg (12lb to 16lb)
SWL 40 / 40	40	40	22.7	8.94	30.8	12.13

Heavy Gauge Swivel Rigs - Line classes 15 to 37kg (30 to 80lb) - Drag 6kg to 20kg (12lb to 40lb)
Rig Code	Hook	Lure	Swivel to	Swivel to	Total	Total
Rig Code	Size (mm)	Size Code	Eye (cm)	Eye (in)	Length (cm)	Length (in)
SWH 25 / 10	25	10	8.70	3.43	13.30	5.24
SWH 25 / 15	25	15	10.20	4.02	14.60	5.75
SWH 25 / 25	25	25	13.40	5.28	17.60	6.93
SWH 30 / 25	30	25	13.70	5.39	19.10	7.52
SWH 30 / 35	30	30	19.20	7.56	24.70	9.72
SWH 35 / 35	35	35	19.30	7.60	25.70	10.12
SWH 40 / 40	40	40	22.10	8.70	29.80	11.73
X Heavy Gauge Swivel Rigs - Line classes 60kg (130lb) and over - Drag 10kg (22lb) and over
SWHX 45X / 40	45X	40	22.50	8.86	30.50	12.01
SWHX 45X / 55	45X	55	26.40	10.39	34.80	13.70
SWHX 50X / 55-60	50X	55-60	26.30	10.35	36.10	14.21
SWHX 60X / 60	60X	60	26.40	10.39	37.00	14.57

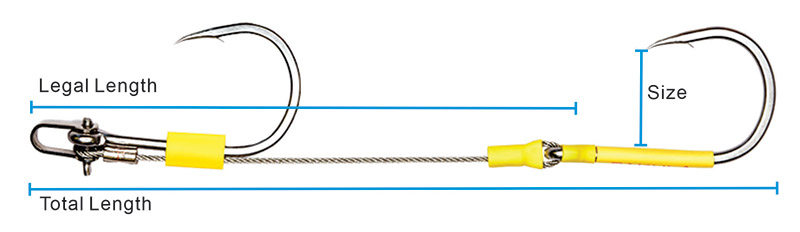

Pakula Shackle Rigs

Light Gauge Shackle Rigs - Max Line class 15kg (30lb) - Drag 3kg to 6kg (6lb to 12lb)
Rig Code	Hook	Lure	Swivel to	Swivel to	Total	Total
Rig Code	Size (mm)	Size Code	Eye (cm)	Eye (in)	Length (cm)	Length (in)
DSR 20 / 10	20	10	9.00	3.54	13.00	5.12
DSR 20 / 15	20	15	9.00	3.54	13.00	5.12
DSR 25 / 15	25	15	9.50	3.74	14.10	5.55
DSR 25 / 25	25	25	13.90	5.47	18.30	7.20
DSR 30 / 35	30	30	18.30	7.20	24.40	9.61
Light Gauge Shackle Rigs - Max Line class 24kg (50lb) - Drag 6kg to 8kg (12lb to 16lb)
DSR 40 / 40	40	40	21.00	8.27	29.00	11.42

Heavy Gauge Shackle Rigs - Line classes 15 to 37kg (30 to 80lb) - Drag 6kg to 20kg (12lb to 40lb)
Rig Code	Hook	Lure	Swivel to	Swivel to	Total	Total
Rig Code	Size (mm)	Size Code	Eye (cm)	Eye (in)	Length (cm)	Length (in)
DSRX 25 / 10	25	10	8.30	3.27	12.90	5.08
DSRX 25 / 15	25	15	9.80	3.86	14.20	5.59
DSRX 25 / 25	25	25	13.40	5.28	18.00	7.09
DSRX 30 / 25	30	25	13.60	5.35	18.80	7.40
DSRX 30 / 35	30	30	19.00	7.48	24.50	9.65
DSRX 35 / 35	35	35	19.00	7.48	25.30	9.96
DSRX 40 / 40	40	40	21.50	8.46	29.40	11.57
X Heavy Gauge Swivel Rigs - Line classes 60kg (130lb) and over - Drag 10kg (22lb) and over
DSRX 45X / 40	45X	40	21.20	8.35	29.40	11.57
DSRX 45X / 55	45X	55	26.80	10.55	25.30	9.96
DSRX 50X / 55-60	50X	55-60	26.80	10.55	36.40	14.33
DSRX 60X / 60	60X	60	26.50	10.43	37.20	14.65
